Vicanpack cartoning machines take over once the primary package leaves the filling or packing machine. They open flat cartons, count and group products, load them from the side, fold the flaps, and close each box. Depending on the setup, output can reach 30–50 cartons/min.

The range handles pouches, sachets, stick packs, flow-wrapped products, bottles, tubes, and other small packaged goods. A cartoning packaging machine can run as a separate unit or connect with pouch packers, filling lines, flow wrappers, and stick pack machines. For continuous production, the automatic cartoning machine keeps carton feeding, product loading, and box closing in one sequence.

Putting a product into a carton sounds simple until the line starts running. The machine must separate each flat carton, open it fully, keep the product in the correct direction, load the required quantity and close every flap without crushing the box.

Vicanpack supplies cartoning machines for products that already have their first layer of packaging. These include sachets, stick packs, pouches, bottles, tubes, jars, blister packs and flow-wrapped items.

The cartoning packaging machine can work after an existing production machine or run as an independent packing station. The final setup depends on how the product arrives, how many pieces enter each carton and how the factory wants to close the box.

Most cartoning problems do not begin inside the carton magazine. They begin at the product infeed.

Products may arrive too close together, overlap on the conveyor or face different directions. Soft bags may bend or slide. Round bottles may roll. Tubes may rotate before they reach the loading position.

An automatic cartoning machine needs a feeding section that prepares the product before insertion. Vicanpack matches the feeding method to the package rather than using one standard conveyor for every application.

The line may use:

• Counting belts for sachets and stick packs
• Stacking units for flat bags
• Timing screws for bottles and jars
• Pocket conveyors for tubes
• Servo belts for wrapped products
• Pushers for grouped packs
• Robotic pick-and-place units for mixed orientations

The correct feeding method keeps the required product count together and gives the cartoner enough time to complete each loading cycle.

A horizontal cartoning machine usually follows this sequence:

1. The carton magazine holds flat folding cartons.
2. A suction mechanism removes one carton.
3. The machine opens the carton and places it into the transport chain.
4. The feeding section counts or groups the products.
5. A pusher or loading unit moves the products into the open carton.
6. The machine folds the carton flaps.
7. Tuck-in tabs or hot melt glue close the carton.
8. The conveyor sends the finished carton to coding, inspection or case packing.

Each movement must follow the previous one. If a carton fails to open, the machine should stop the product loading action. If the feeding section does not receive enough products, the machine should avoid producing an empty carton.

Sensors check these conditions during operation.

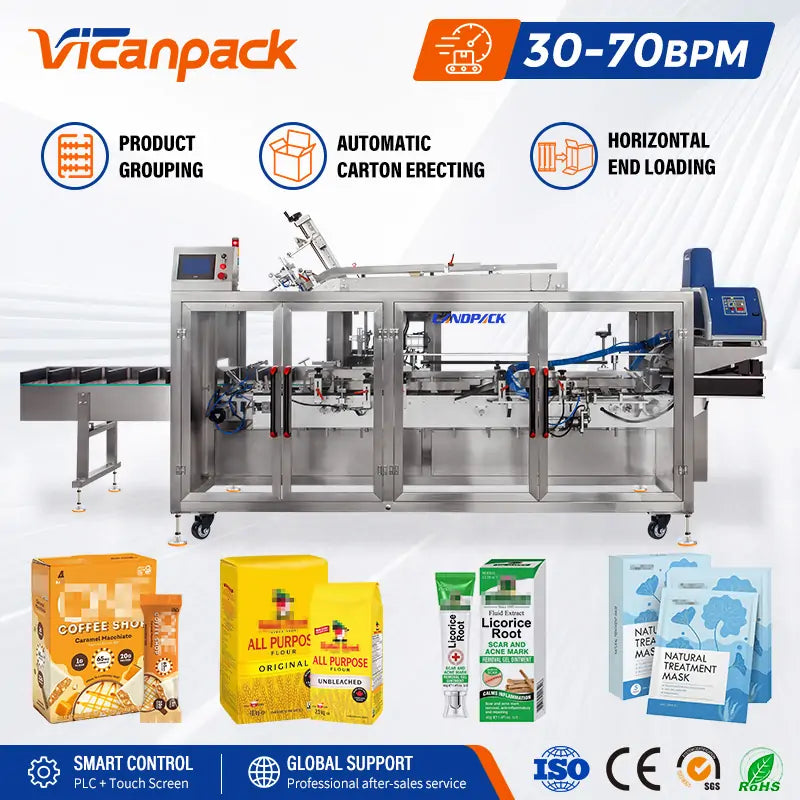

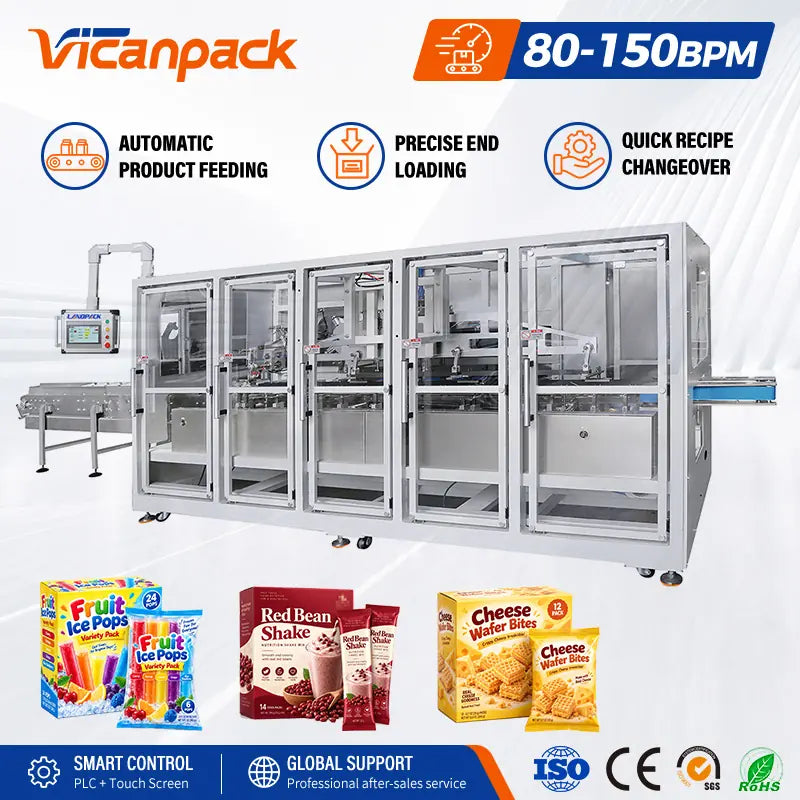

A horizontal end-load cartoner opens the carton from the side and pushes the product through one end.

This structure works with many regular products and product groups, including:

• Sachets stacked by quantity
• Stick packs arranged in rows
• Pouches and small bags
• Bottles placed upright or horizontally
• Cosmetic and pharmaceutical tubes
• Flow-wrapped biscuits and food
• Soap and daily-use products
• Hardware packs and small components

The product must fit through the carton opening without catching the side flaps. Product width, carton opening size and insertion direction all affect the loading design.

A rigid bottle follows the pusher more easily than a soft pouch. A stack of sachets may need side guides to prevent the upper packs from moving. Vicanpack checks these details before selecting the pusher shape and loading channel.

Small flexible packs often come from multilane sachet or stick-pack machines. The cartoning section must collect the packs, count them and arrange them before loading.

Several packing patterns may apply:

• Packs placed flat in one stack
• Packs arranged in several short stacks
• Stick packs grouped side by side
• Packs loaded together with a leaflet
• Small bags loaded into an inner tray first

Thin sachets can overlap during transfer, which makes ordinary photoelectric counting less reliable. The feeding system may need separation belts, vacuum pickup or mechanical grouping.

Vicanpack configures the cartoning machine according to the required pack count and carton arrangement. The upstream machine speed also matters. A multilane machine may release several packs during one cycle, so the cartoner must receive and divide them correctly.

Bottles and jars need controlled spacing before they enter the carton.

The line may load one bottle per carton, several bottles in a row or a product set that includes a bottle, pump, spoon or other accessory.

Round bottles can turn on the conveyor. Square bottles may catch at guide-rail transitions. Glass containers need smooth transfers that avoid sudden contact.

A bottle cartoning line may connect:

Bottle unscrambling → Filling → Capping → Labeling → Product spacing → Cartoning → Coding

The label direction may matter when the finished carton has a window or a fixed opening direction. In that case, the feeding unit must rotate or position the bottle before loading.

Plastic and metal tubes often enter cartons after filling and sealing.

A tube cartoning machine can receive tubes from the filling line, arrange them in the same direction and load them into folding cartons. The line may also add leaflets, nozzles or other small parts.

Common applications include:

• Toothpaste
• Facial cream
• Ointment
• Hair color
• Adhesive
• Pharmaceutical cream
• Cosmetic gel

Tube caps and sealed ends create two different product shapes. The feeding track must keep the tube direction consistent so the pusher does not catch the carton opening.

For soft plastic tubes, excessive pressure may deform the tube. The loading guide and pusher need enough support without squeezing the product.

Biscuits, chocolate bars, soap, masks and other solid products may enter a carton after flow wrapping.

The flow wrapper usually releases products in a single line. The cartoner then spaces, groups and loads them according to the required carton quantity.

The two machines must share speed signals. When the cartoner pauses, an accumulation conveyor can hold products for a short time. Without this buffer, wrapped products may collect at the flow-wrapper discharge and cause a line stop.

For several products per carton, the feeding section may stack the packs, arrange them side by side or create several layers before insertion.

The carton affects the machine structure as much as the product does.

Vicanpack commonly works with folding cartons that use:

• Tuck-in flaps
• Hot melt glue
• Straight tuck ends
• Reverse tuck ends
• Lock-bottom structures
• Cartons with display windows
• Cartons with internal trays

Tuck-in closing does not require glue, but the carton tabs and slots must match accurately. Hot melt glue supports cartons that need sealed end flaps or stronger closure.

Poor carton quality can cause opening and closing problems. Common issues include:

• Cartons sticking together in the magazine
• Uneven folding lines
• Weak or warped cardboard
• Incorrect flap dimensions
• Rough die-cut edges
• Carton size differences between batches

Machine adjustment cannot fully correct badly made cartons. Vicanpack reviews the carton drawing and tests samples before confirming the magazine, opening mechanism and flap-closing parts.

Some products need more than the main item inside the carton.

Pharmaceutical, cosmetic and daily chemical products may require an instruction leaflet. Powder products may include a spoon. Bottles may ship with a pump or separate cap.

The cartoning packaging machine can add feeding units for these parts. Each feeder checks whether the accessory reaches the loading position before the machine closes the carton.

A leaflet feeder must handle the real folded leaflet size and paper thickness. Thin paper may stick together, while a thick folded leaflet may take up more room than expected inside the carton.

The product, leaflet and accessory should fit without forcing the flaps outward.

The cartoning line can print or check information before the finished box leaves the machine.

Optional units may include:

• Date coding
• Batch number printing
• Inkjet printing
• Laser marking
• Barcode reading
• Carton presence checking
• Product presence checking
• Leaflet detection
• Glue inspection
• Reject collection

The machine can remove cartons that miss a product, leaflet or printed code. The inspection method depends on what the factory needs to check and where the item sits inside the carton.

A sensor can confirm presence, but it may not confirm that the correct product entered the box. Projects with several similar products may need barcode or vision checks before cartoning.

An automatic cartoning machine can connect with:

• Sachet packing machines
• Stick-pack machines
• Premade pouch machines
• Flow wrappers
• Bottle filling and capping lines
• Tube filling and sealing machines
• Blister packing machines
• Counting and weighing equipment

The connection requires more than placing the machines next to each other.

Vicanpack checks the product discharge height, travel direction, release pattern and actual output of the upstream machine. The cartoner must know when products arrive and when the upstream equipment pauses.

A suitable buffer can prevent a short cartoner stop from immediately shutting down the primary packaging machine.

When several upstream machines feed one cartoner, the conveyor layout also needs merging control. Products should enter the feeding section in a planned order rather than compete for the same loading position.

Some factories do not need a direct machine-to-machine connection.

Operators can place products onto the cartoner’s feeding conveyor while the machine handles carton opening, loading and closing. This arrangement suits lower output, frequent product changes or products that require manual checking before cartoning.

A standalone cartoning machine still removes repeated carton forming and flap closing from the operator’s work.

The factory can add automatic feeding later if the original machine layout reserves enough conveyor space and control interfaces.

One cartoning machine can often handle several carton sizes within its working range.

Operators may need to adjust:

• Carton magazine width
• Carton transport chain
• Product feeding guides
• Loading pusher position
• Flap folders
• Glue nozzle position
• Discharge guides

Closely related carton sizes need fewer changes. Large differences in length, width or height may require replacement parts.

The product arrangement may also change with the carton. Loading four sachets into a small box uses a different grouping action from loading twenty sachets into several stacks.

A wide machine size range does not mean every format can run with one adjustment. Vicanpack checks each product and carton combination before confirming the usable range.

The cartoner should follow the real product output, not only the maximum speed printed on the upstream machine specification.

For example, a packing machine may produce 120 sachets per minute. When each carton holds 12 sachets, the cartoner needs at least 10 completed cartons per minute. The feeding section must also count and group those 12 sachets during each carton cycle.

When the carton holds fewer products, the required carton speed rises. When several upstream machines feed the same cartoner, their combined output determines the final requirement.

Other factors also affect the usable speed:

• Product shape
• Number of products per carton
• Leaflet or accessory insertion
• Carton size
• Closing method
• Product arrival pattern
• Required inspection steps

A higher machine speed does not help when the feeding system cannot prepare the products in time.

Finished retail cartons may continue into an end-of-line packaging section.

The downstream route can include:

Carton discharge → Carton grouping → Case erecting → Case packing → Case sealing → Palletizing

Cartons can enter shipping cases by row, layer or fixed packing pattern. The case packer may use side loading, top loading or robotic gripping.

Vicanpack can supply the cartoning machine alone or plan the connection with case packing equipment. The factory can also install the cartoner first and reserve space for later expansion.

Vicanpack cartoning machines serve many packaged products, such as:

Food Products

Sachets, seasoning packs, coffee sticks, biscuits, chocolate, candy, tea bags, pouches and wrapped bakery products.

Pharmaceutical Products

Blister packs, medicine bottles, tubes, sachets, medical items and products that need instruction leaflets.

Cosmetic Products

Cream tubes, perfume bottles, jars, masks, small containers and gift sets.

Daily Chemical Products

Toothpaste, soap, detergent packs, adhesive tubes, cleaning-product bottles and personal-care products.

Consumer and Hardware Products

Small components, fastener packs, household items, stationery and other products that fit folding cartons.

Product category alone does not decide the machine. The cartoner mainly needs consistent product dimensions, a workable loading direction and a carton that can open and close correctly.

To prepare a cartoning machine proposal, provide:

1. Product name, photos and samples
2. Product dimensions and weight
3. Required quantity per carton
4. Product arrangement inside the carton
5. Carton drawing and physical samples
6. Carton closing method
7. Required cartons per minute
8. Leaflet or accessory details
9. Upstream machine information
10. Conveyor direction and height
11. Available factory space
12. Downstream equipment requirements

A video of the current production process also helps Vicanpack check how products leave the upstream machine and how operators handle them now.

Vicanpack supplies standalone cartoners and connected cartoning lines for bags, bottles, tubes, wrapped products and other packaged goods.

The machine can complete carton picking, carton opening, product feeding, loading, flap folding and carton closing in one working sequence. Optional units can add leaflet insertion, coding, inspection and reject handling.

The final automatic cartoning machine configuration follows the product shape, carton structure, packing quantity and connection with the rest of the line. A clear product-loading route matters more than adding unnecessary machine functions.
