Vicanpack cup filling machines load empty cups, measure the product, place film or lids, seal each cup, and discharge the finished packs in one running sequence. The range covers liquids, sauces, yogurt, jelly, coffee powder, cereal, popcorn, snacks, instant noodles, and ice cubes, with setups for plastic cups, K-Cups, coffee capsules, and other preformed containers.
A cup filling and sealing machine can use a linear or rotary layout depending on cup size, product type, and production speed. For continuous production, the automatic cup filling and sealing machine can add cup feeding, dosing, lid placement, coding, checking, and downstream conveying around the main filling and sealing process.
Cup Filling Machine for Liquids, Granules, Powders and Food Products
A cup can hold yogurt, juice, sauce, coffee powder, cereal, nuts or even ice cubes, but these products need very different filling methods.
Vicanpack supplies cup filling machines for preformed plastic cups, trays and similar containers. The machine can handle cup feeding, product dosing, lid or film placement, sealing and finished-cup discharge in one production process.
Both linear and rotary layouts are available according to the cup size, product, required output and available factory space.
What Products Can a Cup Filling Machine Pack?
Vicanpack configures the filling section around the material rather than using one dosing unit for every product.
Liquid and Paste Products
Pump or piston filling systems handle yogurt, milk drinks, juice, jelly, sauce, jam and other liquid or thick products.
Product viscosity, filling temperature and whether the material contains fruit pieces or other particles affect the pump and filling nozzle.
Granules and Solid Food
Multihead weighers or other weighing systems can fill cereal, popcorn, nuts, dried fruit, candy, snacks and similar products into cups.
Products such as ice cubes need a feeding and weighing system that can handle larger pieces without blocking the discharge path.
Powder Products
Auger dosing units can fill coffee powder and other dry powders. K-Cup and coffee capsule projects may also require specific cup positioning, powder dosing and sealing structures.
Noodles and Mixed Products
Instant noodle cup lines can combine noodle feeding with seasoning, vegetables or other ingredients. When one cup contains several materials, each ingredient needs its own feeding station.
How Does a Cup Filling and Sealing Machine Work?
A typical cup filling and sealing machine follows this sequence:
Cup Feeding → Cup Positioning → Product Filling → Film or Lid Placement → Heat Sealing → Cup Discharge
Some projects add a second sealing station, date coding, lid pressing or cup collection after sealing.
The exact process depends on the package. A yogurt cup may use roll-film sealing, while another product may use a precut foil lid or plastic cover.
The cup rim also matters. The sealing plate needs to match its diameter and shape so the film sits correctly around the opening.
Linear or Rotary Cup Filling Machine?
A linear machine moves cups through stations in a straight path. It suits multi-lane production and factories that have enough length for a straight machine layout.

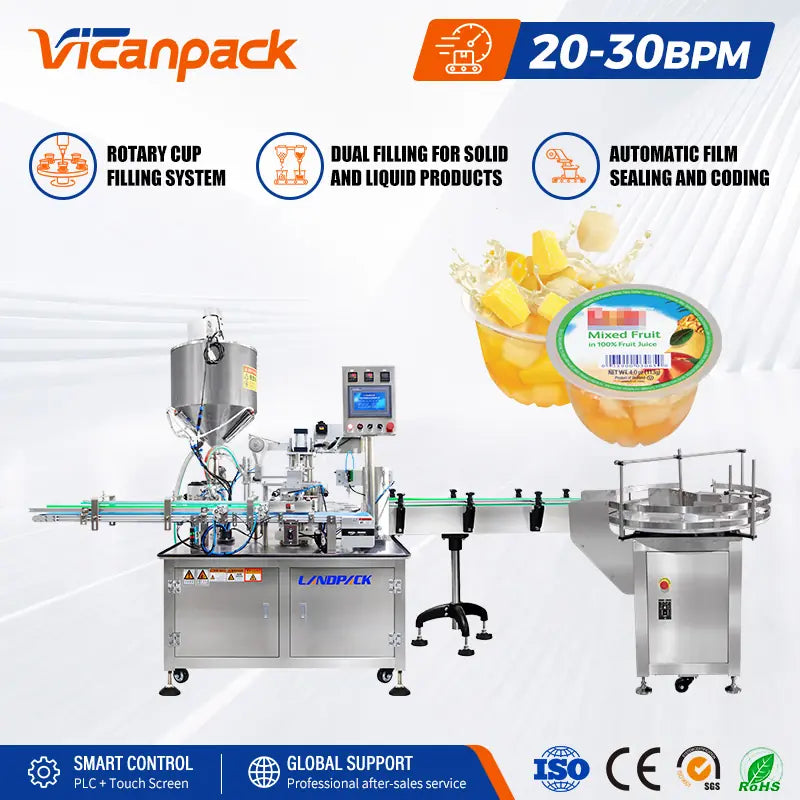

A rotary machine carries cups around a circular indexing table. This structure keeps several operations within a smaller footprint and works well with many single-cup or multi-station applications.
Neither structure automatically suits every project better.
Vicanpack checks:
- Cup diameter and height
- Product type
- Filling volume or weight
- Required cups per minute
- Number of filling ingredients
- Sealing material
- Factory layout
These details determine which machine arrangement makes more sense.
Cup Sealing Needs the Right Film and Temperature
Filling is only half of a cup filling and sealing machine project.
The cup and sealing film must work together. PP, PET, PE and other cup materials may require different sealing films and temperature settings.
Poor material matching can cause weak seals, wrinkled film or leaking cups even when the sealing machine runs normally.
Before machine production, provide actual cups and sealing film whenever possible. Vicanpack can check the cup rim, film size and sealing method against the machine structure.
Automatic Cup Filling and Sealing Machine
An automatic cup filling and sealing machine can take empty cups from a magazine, fill the product, place the sealing material and close each cup without operators handling every package.
Depending on the application, the machine can also add:
- Cup denesting
- Multiple filling stations
- Precut foil placement
- Roll-film feeding
- Heat sealing
- Lid pressing
- Date coding
- Finished-cup conveyor
- Cup counting and collection
For products with several ingredients, Vicanpack can place separate filling units along the same machine.
What Affects Cup Filling Speed?
Cup filling speed depends on more than the number of lanes.
A small dose of juice fills faster than a thick sauce. Granular products need enough time for weighing and discharge. Large ice cubes need a wider product path. Multi-ingredient noodle cups need several feeding steps before sealing.
The sealing time also affects the final output.
When selecting a machine, confirm the real production requirement in cups per minute, along with the number of cups that the machine fills during each cycle.
Information Needed for Machine Selection
Send Vicanpack the following details:
- Product name and photo
- Filling weight or volume
- Cup dimensions
- Cup and sealing material
- Lid or film type
- Required cups per minute
- Number of ingredients per cup
- Sample cups and sealing film when available
For liquids and pastes, also provide information about viscosity, particles and filling temperature.
Cup Filling Machine FAQs
Vicanpack filling machines cover liquid, paste, powder, and granule products packed into bottles, jars, cans, tins, and other rigid containers. The product determines the filling method: piston and pump fillers suit water, oil, sauces, detergent, and creams; auger systems handle milk powder, spices, and other fine powders; weighing systems measure rice, beans, tea, nuts, and similar granules.
A filling machine can work on its own or become part of a filling line with bottle feeding, capping, can seaming, labeling, coding, and weight checking. Vicanpack supplies different filling line machine configurations for food, beverage, daily chemical, and related production, with the filling range, number of heads, conveyor layout, and downstream equipment matched to the actual container and output requirement.
