Alcohol-based sanitizer and thicker hand gel need different filling setups. Vicanpack hand sanitizer filling machines cover both types, with multi-head liquid fillers for free-flowing products and piston or pump filling systems for gels and thicker formulas. They can fill plastic or glass bottles in different shapes and volumes.
For a complete bottle line, a sanitizer filling machine can work with cap feeding, capping, labeling, coding, and conveying equipment. Vicanpack also offers sachet and premade pouch machines for single-use or refill packs. The automatic hand sanitizer filling machine setup depends on the product viscosity, filling volume, bottle or pouch format, number of filling heads, and required production speed.
Hand Sanitizer Filling Machine for Liquid and Gel Products
Hand sanitizer formulas can range from thin alcohol-based liquids to thick gels. The difference changes how the product moves through the tank, pump, pipe and filling nozzle.
Vicanpack supplies hand sanitizer filling machines for bottles, sachets and premade pouches. We configure the filling method around the sanitizer formula, filling volume, package and required production rate.
Liquid Sanitizer and Gel Need Different Filling Setups
Thin sanitizer flows quickly and can splash if the filling speed does not match the bottle opening.
Gel sanitizer behaves differently. It moves more slowly, may pull a short string from the nozzle and needs enough pressure to deliver a repeatable dose.
Common filling options include piston fillers, gear pumps and other pump-based systems. The final choice depends on:
- Product viscosity
- Alcohol content
- Filling volume
- Bottle opening
- Required bottles per minute
- Dripping after filling
- Formula changes between products
Do not choose a sanitizer filling machine only from the bottle size. Two 500 ml products can need different pumps when one is a thin liquid and the other is a thick gel.
Bottle Filling for Hand Sanitizer
Bottle packaging can use small travel-size containers, standard retail bottles or larger refill bottles.
A typical line can follow:
Bottle Feeding → Filling → Cap Feeding → Capping → Labeling → Coding

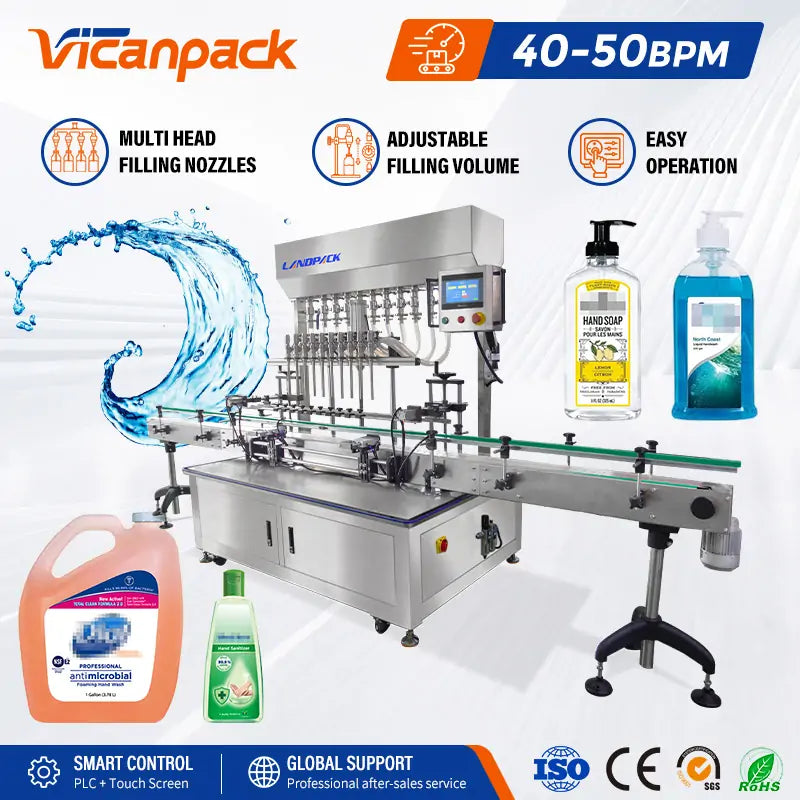

An automatic hand sanitizer filling machine can use several filling heads when the required output increases.
The line can also work with different closures such as screw caps, flip-top caps and pump heads. Pump dispensers usually need more handling than a standard screw cap because the feeding system must control their direction before capping.
Vicanpack checks both the bottle and closure before selecting the line configuration.
Hand Sanitizer Sachet and Pouch Packing

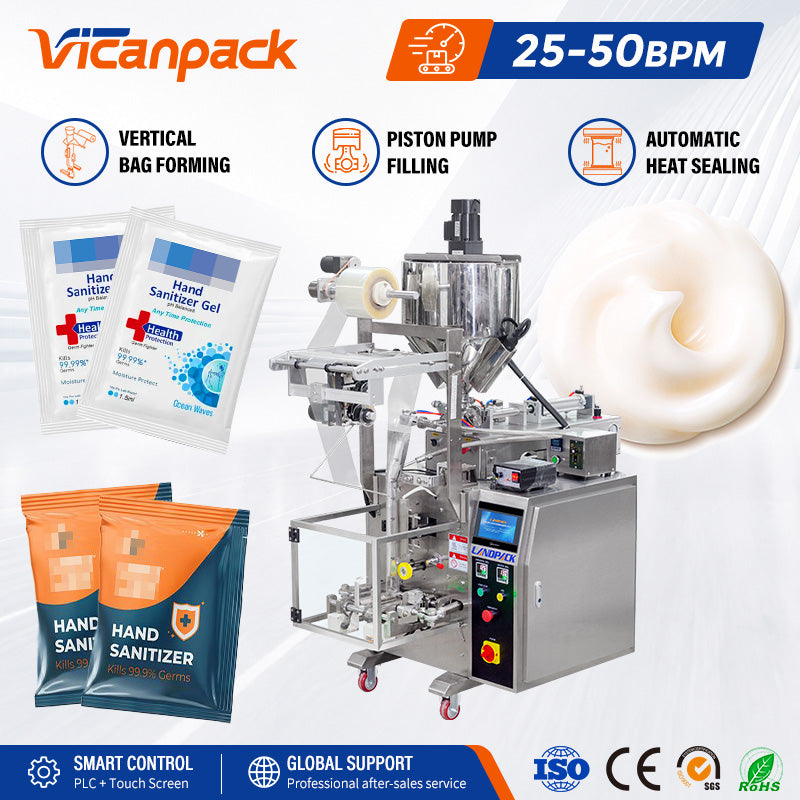

Small single-use sanitizer packs can use sachet equipment.
A four-side seal machine forms the sachet from roll film, fills the sanitizer and seals the pack. This format suits samples, travel packs and individual portions.

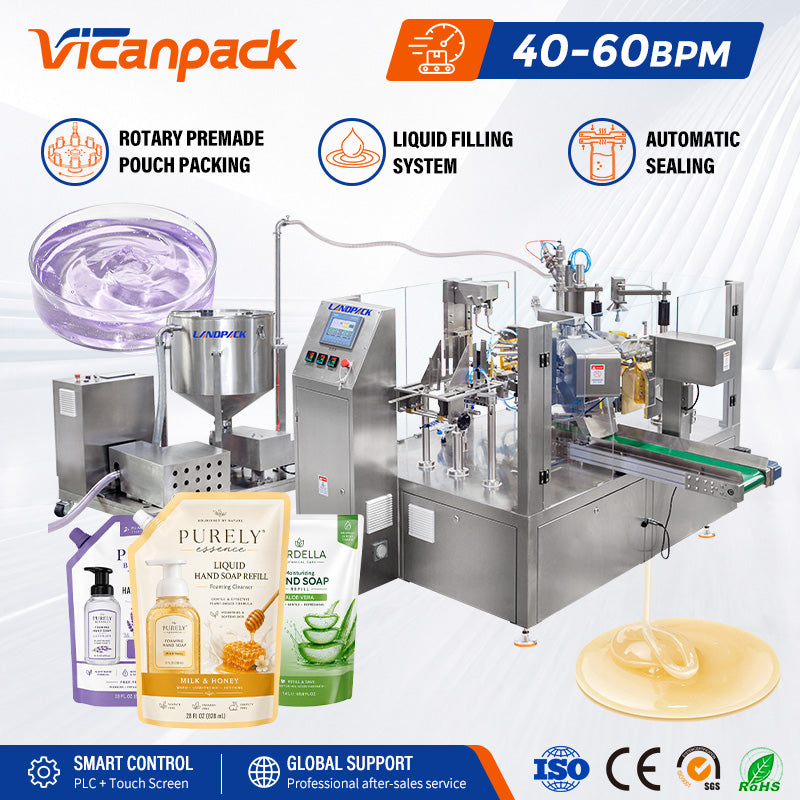

Premade pouches offer another option for larger flexible packs. The machine picks up the finished pouch, opens it, fills the product and closes the top.
Bottle filling and flexible pouch packing need different machine structures, even when they handle the same sanitizer formula.
Filling Alcohol-Based Sanitizer
Alcohol-based sanitizer often has lower viscosity than gel products.
The machine needs controlled product flow and components that suit the actual formulation. If the product contains a high concentration of alcohol, provide the formula details and local electrical requirements before machine design.
Vicanpack also needs to know whether the factory fills several formulas on one line. Changing from a thin sanitizer to a much thicker gel may require different filling parameters or pump parts.
What Controls Filling Speed?
The number of filling heads is only one factor.
Actual output also depends on:
- Liquid or gel viscosity
- Filling volume
- Bottle neck diameter
- Pump capacity
- Required filling tolerance
- Capping speed
- Bottle stability on the conveyor
A small bottle of thin sanitizer fills differently from a large pump bottle of gel.
The complete line should match the required finished bottles per minute rather than relying only on the maximum cycle speed of the filler.
Standalone Filler or Complete Sanitizer Filling Line?
A standalone filler suits factories that already have bottle handling and capping equipment.
A complete line can add:
- Bottle unscrambler
- Multi-head filling machine
- Cap sorting and feeding
- Automatic capping
- Labeling machine
- Date or batch coder
- Checkweigher
- Cartoning or case packing
Vicanpack can also connect a new filling section with an existing production line after checking conveyor height, bottle direction and current output.
What Information Should You Send?
For machine selection, provide:
- Sanitizer type: liquid or gel
- Approximate viscosity
- Alcohol concentration when applicable
- Filling volume
- Bottle, sachet or pouch dimensions
- Cap or closure type
- Required packs per minute
- Number of package sizes
Product and container samples help confirm the pump, nozzle and changeover parts before the machine configuration is finalized.
Hand Sanitizer Filling Machine FAQs
What machine is used to fill hand sanitizer?
A hand sanitizer filling machine uses a suitable pump or piston filling system to dose liquid or gel sanitizer into bottles. The filling method depends mainly on product viscosity and filling volume.
Can one machine fill both liquid and gel sanitizer?
It can when both formulas fall within the working range of the same filling system. Large viscosity differences may require different pump settings, nozzles or filling parts.
Can the machine connect with capping and labeling equipment?
Yes. Vicanpack can combine filling, cap feeding, capping, labeling and coding into one bottle production line.
Can hand sanitizer go into sachets or premade pouches?
Yes. Sachet machines can pack small portions from roll film, while premade pouch machines handle finished flexible bags.
What information determines the machine model?
The main factors are sanitizer viscosity, filling volume, container dimensions, closure type and required production speed.
